DO NOT use the reflow oven without having received instructions and official permission from an authorized person.
¶ xHain Reflow Oven
Please read the Space Rules first, especially the sections on "safety" and "use of machinery".
Join us on Matrix to find out more or get an intro.
¶ Overview

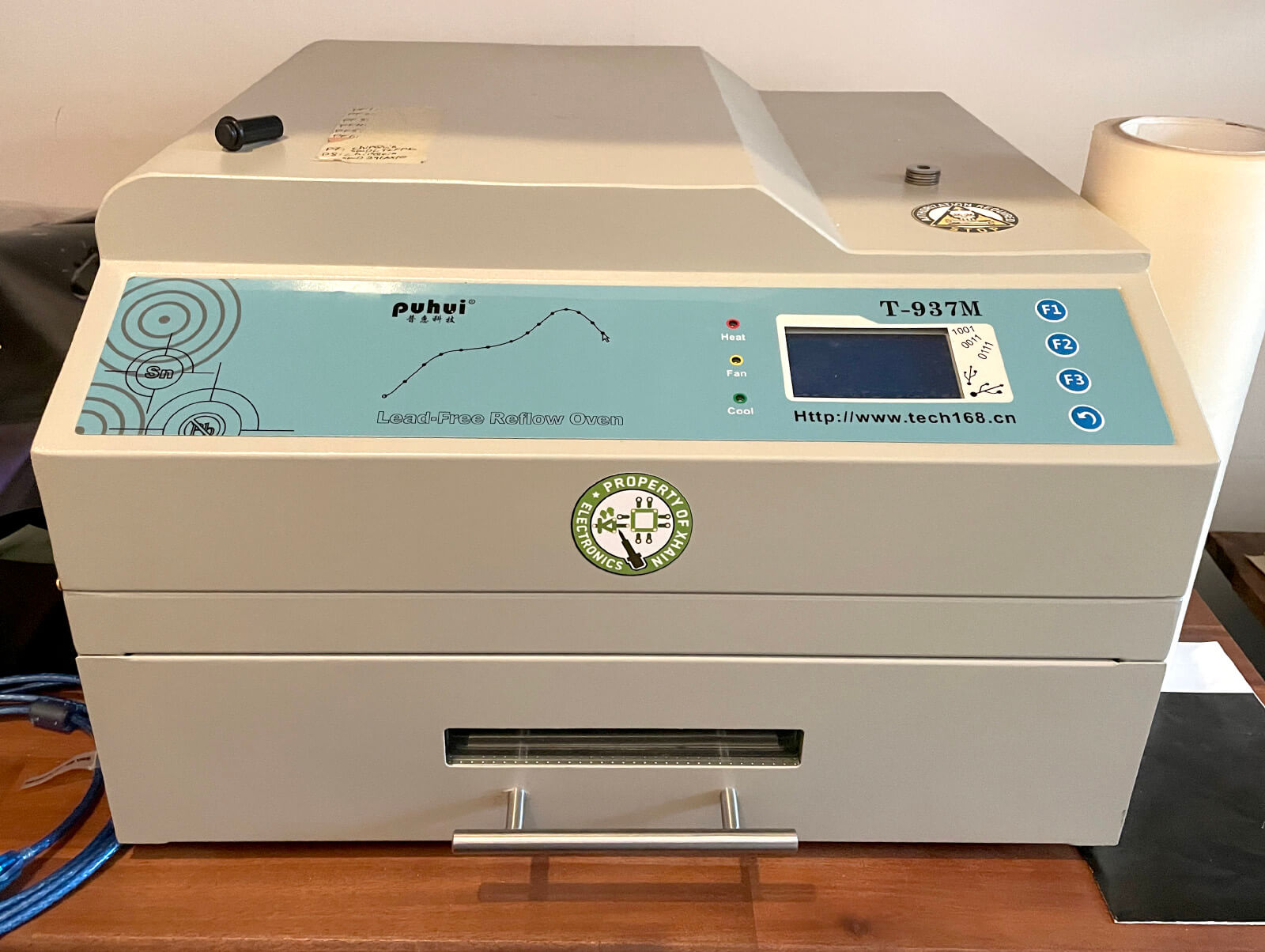

The reflow oven is a Puhui T-937M which uses infrared for heating. It supports boards up to 290x375mm and a maximum operating temperature of 350°C. Though generally boards larger than 100x100mm require extra configuration, to avoid inclomplete reflow and are thus not recommended.
¶ Related
Operation
The Operational Guide
ResourcesManuals, Usage Tips
Temperature ProfilesBuilt-in Temperature Profiles
Software DownloadSoftware for Custom Profiles
